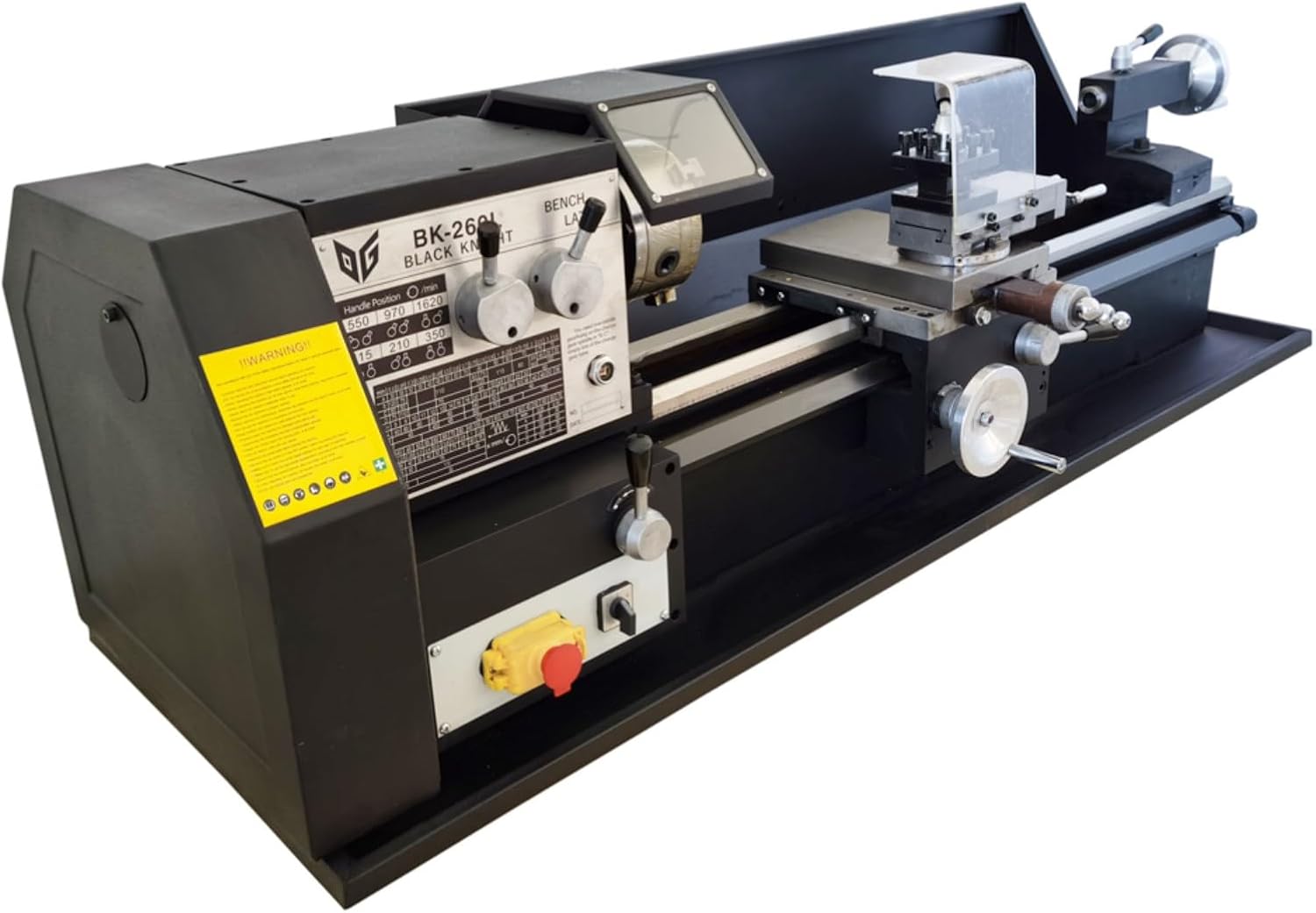

Heavy-duty Metal Lathe BK260L Inch/Metric Thread 750W Benchtop Metal Wood Horizontal Lathe 115-1620rpm Variable Speed 10.2"*27.6" AC Motor Wood Horizontal Processer

Product Parameters:Model: BK-260LVoltage: AC110V (AC Motor)Power: 750W(1HP)Distance between centers: 27.56"(700mm)Max swing diameter over bed: 10.24"(260mm)Spindle bore: 1.06"(27mm)Max clamping diameter of chuck: 4.33"(110mm)Width of lathe bed: 4.92"(125mm)Thread standard: Inch and metric screw threadRange of Inch Threads: 8-56T.P.IRange of metric threads: 0.2mm-3.5mmSpindle taper: MT4Knife rest labour: Horizontal four-stationSpindle rotation speed: 115-1620rpmPrecision of the spindle: 0.01-0.02mmAutomatic feed range: 0.1mm-0.2mmTail frame taper: MT2Max turning angle of tool rest slide: ±45°Machine assembly metal gear specifications: 30/35/65/120Maximum stroke of tool rest plate: 2.36"(60mm)Maximum stroke of middle plate: 5.12"(130mm)Maximum stroke of tailstock sleeve: 2.36"(60mm)Package size: 57.5"*24.0"*24.4"(146cm*61cm*62cm)Net weight/Gross weight: 359LB(163kg)/424LB(192.5kg)Item Included (056851)BK260L lathe *1Chuck jaw *3Chuck spanner *1Fork wrench *3Lathe centre *2Hexagon wrench *4English manual *1Metal gear *10(40/45/50/55/60/70/75/80/110/127)

• High quality: The lathe is made of sturdy cast iron material and undergoes quenching treatment, significantly improving the strength, toughness, and wear resistance of the bed, ensuring the stability of the lathe during long-term operation
• Universal between metric and imperial systems: This lathe can process metric or imperial threads without the need for frequent component replacement or adjustment of settings, significantly improving overall work efficiency and processing flexibility
• Wide processing range: This lathe is different from the 210 series lathes on the market in that its AC motor has strong torque, excellent rigidity, large turning diameter, and a wide processing range. The metric thread range covers 0.2-3.5 millimeters, while the imperial thread range is 8-56 TPI, which can meet your more diverse needs
• Convenient design: The lathe is equipped with a user-friendly operating interface, including a one click start stop switch and forward/reverse switch, making operation more convenient and efficient
• Wide applicability: This lathe is suitable for processing various materials, including metal, plastic, wood, etc. It can process various rotating surfaces and end faces of rotating bodies. For example, turning inner and outer cylindrical surfaces, conical surfaces, ring grooves, formed cutting surfaces, and turning end faces. Whether it's industrial production or DIY enthusiasts, they can find suitable application areas for themselves
