Double Head Double Chuck Metal Lathe WM210V 1100W Benchtop Metal Wood Horizontal Lathe Inch Thread 50-2500rpm Variable Speed 8"×29.5" Wood Horizontal Processer with Grating Ruler 110V

Product Parameters:Voltage: AC110V (Brushless Motor)Power: 1100W(1.5HP)Swing Over Bed: 8.27"(210mm)Concentricity tolerance: 0.03mm-0.05mmRotary diameter of tool rest: 5.51"(140mm)Spindle bore: Right side:1.50"(38mm)Left side: 1.26"(32mm)Max clamping diameter of right chuck: 4.92"(125mm)Max clamping diameter of left chuck: 3.94"(100mm)Width of lathe bed: 3.94"(100mm)Thread standard: Inch screw threadNumber of Spindle Speeds: Infinitely variable speedsRange of Inch Threads: 8-44T.P.IRange of metric threads: 0.5mm-3mmSpindle taper: MT3Knife rest labour: Horizontal four-stationSpindle rotation speed: 50-2500rpmPrecision of the spindle: 0.02mmAutomatic feed range: 0.1mm-0.2mmTail frame taper: MT2Maximum stroke of tool rest plate: 2.16"(55mm)Maximum stroke of middle plate: 2.95"(75mm)Maximum stroke of bottom plate: 26.77"(680mm)Maximum stroke of tailstock sleeve: 2.36"(60mm)Package size: 52"*24"*22"(132cm*61cm*56cm)Net weight/Gross weight: 165.3lbs(75kg)/218.3lbs(99kg)Item Included (028374)Miniature lathe *1Fork wrench *3Twist drill set *1Hexagon wrench *7Washer *1Lathe tool *2Oil needle *1Chuck jaw *3Drill chuck set *1Chuck key *2Taper shank *1Fixed center *1Rotating center *1Screwdriver *2 Metal gear *4 (40/50/60/80)

• High quality: The lathe is made of sturdy cast iron material and undergoes quenching treatment, significantly improving the strength, toughness, and wear resistance of the body, ensuring the stability of the lathe during long-term operation

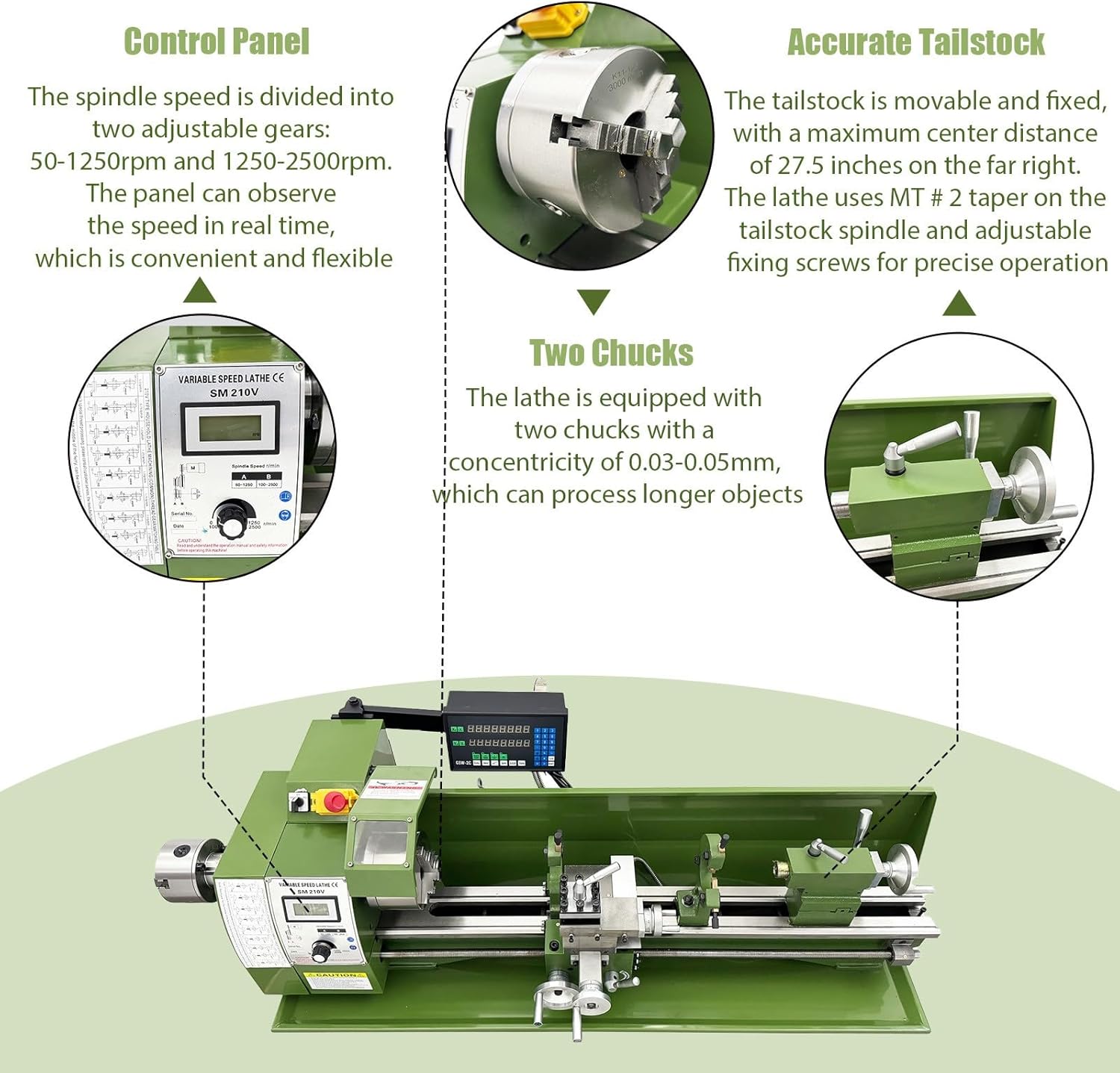

• Convenient design: The lathe is equipped with a user-friendly operating interface, including a one click start stop switch and forward/reverse switch, making operation more convenient and efficient
• Adjustable speed: The spindle speed of the lathe has the function of continuous adjustment, which means that the operator can choose the most suitable speed according to specific machining needs, thereby significantly improving the efficiency and flexibility of the machining process
• Easy to maintain: The structure of small lathes is relatively simple, and daily maintenance and upkeep work is also relatively easy. Users can quickly solve some common small problems to ensure the stable operation of the lathe
• Wide applicability: This lathe is suitable for processing various materials, including metal, plastic, wood, etc. It can process various rotating surfaces and end faces of rotating bodies. For example, turning inner and outer cylindrical surfaces, conical surfaces, ring grooves, formed cutting surfaces, and turning end faces. Whether it's industrial production or DIY enthusiasts, they can find suitable application areas for themselves
