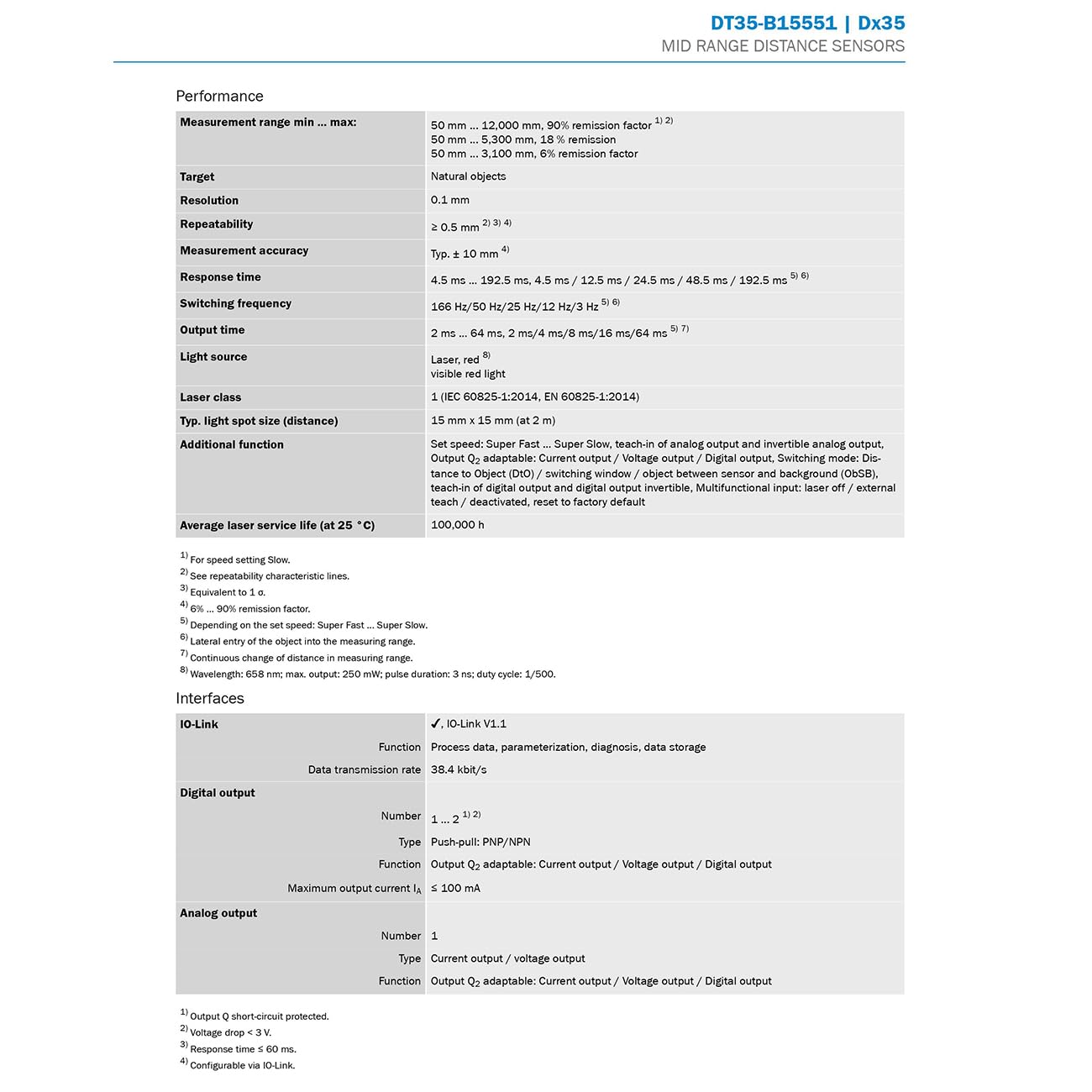

(1PC) DT35-B15551 Laser Distance sensors

Supply voltage Vs DC 12 V ... 30 V 1) 2) Ripple ≤ 5 Vpp 3) Power consumption ≤ 1.7 W 4) Initialization time ≤ 500 ms Warm-up time ≤ 20 min Housing material Plastic (ABS/PC) Window material Plastic (PMMA) Connection type Male connector, M12, 5-pin Indication LEDs Weight 65 g Dimensions (W x H x D) 32 mm x 58.67 mm x 42.7 mm Enclosure rating IP65 IP67 Protection classIII 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A. 2) When using IO-Link output Vs > 18 V. When using analog voltage output Vs > 13 V. 3) May not fall short of or exceed VS tolerances. 4) Without load, at +20 °C. Measurement range min ... max: 50 mm ... 12,000 mm, 90% remission factor 1) 2) 50 mm ... 5,300 mm, 18 % remission 50 mm ... 3,100 mm, 6% remission factor Target Natural objects Resolution 0.1 mm Repeatability ≥ 0.5 mm 2) 3) 4) Measurement accuracy Typ. ± 10 mm 4) Response time 4.5 ms ... 192.5 ms, 4.5 ms / 12.5 ms / 24.5 ms / 48.5 ms / 192.5 ms 5) 6) Switching frequency 166 Hz/50 Hz/25 Hz/12 Hz/3 Hz 5) 6) Output time 2 ms ... 64 ms, 2 ms/4 ms/8 ms/16 ms/64 ms 5) 7) Light source Laser, red 8) visible red light Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) Typ. light spot size (distance) 15 mm x 15 mm (at 2 m) Average laser service life (at 25 °C) 100,000 h 1) For speed setting Slow. 2) See repeatability characteristic lines. 3) Equivalent to 1 σ. 4) 6% ... 90% remission factor. 5) Depending on the set speed: Super Fast ... Super Slow. 6) Lateral entry of the object into the measuring range. 7) Continuous change of distance in measuring range. 8) Wavelength: 658 nm; max. output: 250 mW; pulse duration: 3 ns; duty cycle: 1/500.

• Supply voltage Vs DC 12 V ... 30 V 1) 2)
• Ripple ≤ 5 Vpp 3)
• Power consumption ≤ 1.7 W 4)
• Initialization time ≤ 500 ms
• Warm-up time ≤ 20 min
