12V 200Amp Mobile Audio Battery Isolator High Current Continuous Solenoid Relay | Fits for White Rodgers, Trombetta, Prestolite, Johnson Electric | OE#: 586-902 586-105111 114-1211-020 SBJ4201 SO51221
4.2 (68 items)
Limited Time SaleUS$18.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212623700 | Release Date | 2026/04/06 | List Price | US$12.26 | Model Number | 212623700 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
a Mobile Audio Battery Isolator is a crucial component in car audio systems, especially in setups with high power demands. It helps manage multiple battery systems effectively, prevents power drain between batteries, and ensures consistent power supply for optimal audio system performance.
- Specification: Voltage: 12VDC | Rated Load Current: 200 Amps | Surge Power Current: 300 Amps | Insulation Resistance: ≥50mΩ | Coil Power: ≤38W | Mounting Type: Flat 180 | Battery Terminal: 5/16”-24 UNF Thread | Switch Terminal: #10-32 UNF Thread | Contact Form: Single-Pole Normally Open (SPNO) | Terminal Number: Four |
- Compatible with White Rodgers: | 586-902 | 586-105111 | 586-105111-3 | 586902 | 586105111 | 5861051113 | 586-105111B1 | Trombetta: | 114-1211-020 | 114-1211-020-02 | 114-1211-010 | Prestolite: | 15-550 | SBJ4201 | 15550 | Miscellaneous: | 586-105111-5 | 5861051115 | Johnson Electric: | 5122140 | SO51221 |
- It can be used in vans, RVs, or boats to isolate the house batteries from the alternator and starter battery when the engine isn’t running. It can also be used to isolate two lead-acid batteries from one another to prevent one from drawing down the other.

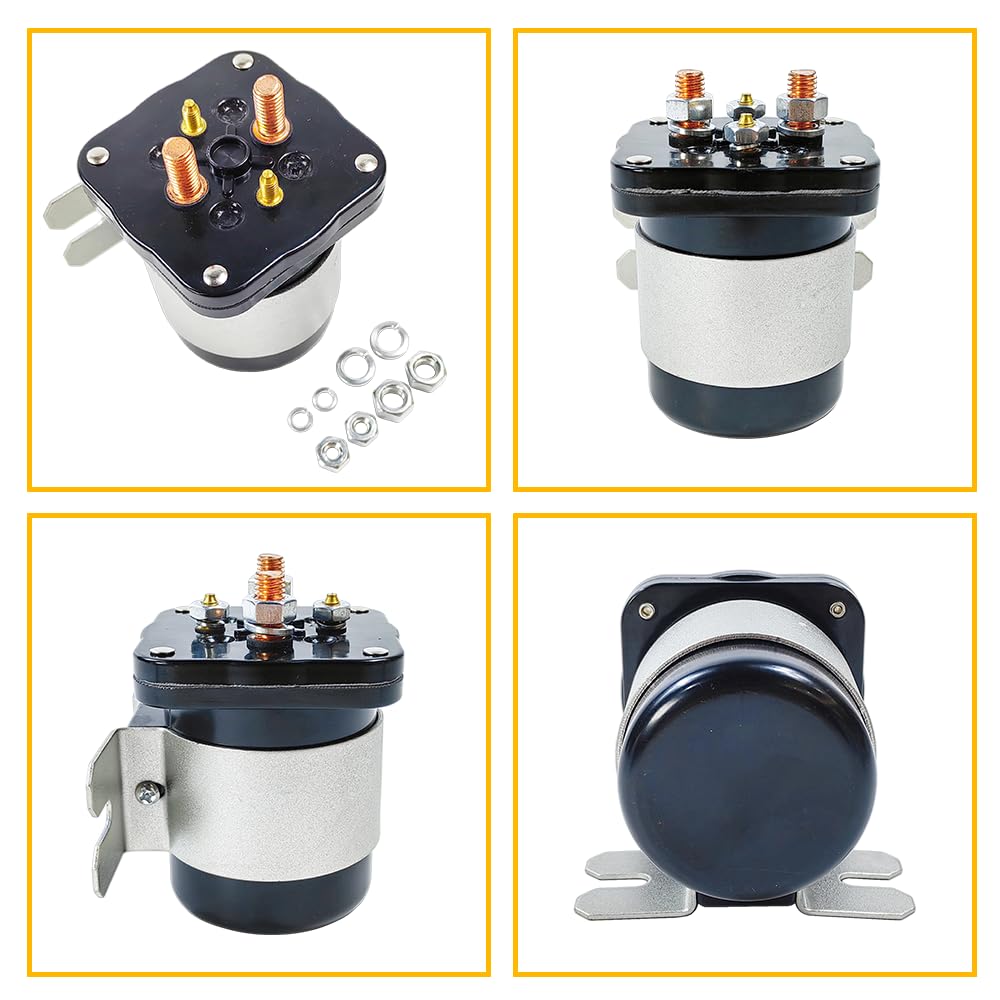

- Product Includes: 1X Solenoid Relay with Bolts & Washers
- Warranty: For any reason, if you are not satisfied with your purchase, contact us directly. We offer 1-year warranty, 100% satisfaction guarantee.
| Model | S024-586-902 |
|---|---|
| Wattage | 38 watts |
| Brand Name | LLNSEAUTO |
| Part Number | S024-586-902 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | LLNSEAUTO |
| Mounting Type | Flat 180 |
| Connector Type | Screw |
| Current Rating | 200 Amps |
| Operation Mode | Electric |
| Contact Material | Copper Alloy |
| Specification Met | OEM |
| Contact Current Rating | 200 Amps |
